200kg weighing liquid filling machine
- dongtaijixie
- 15
- 10

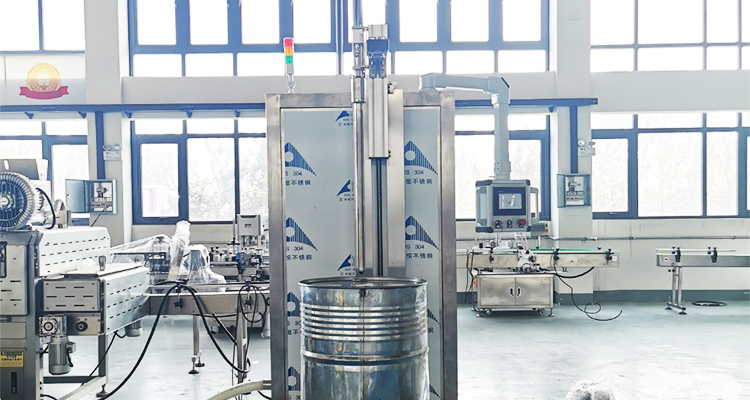

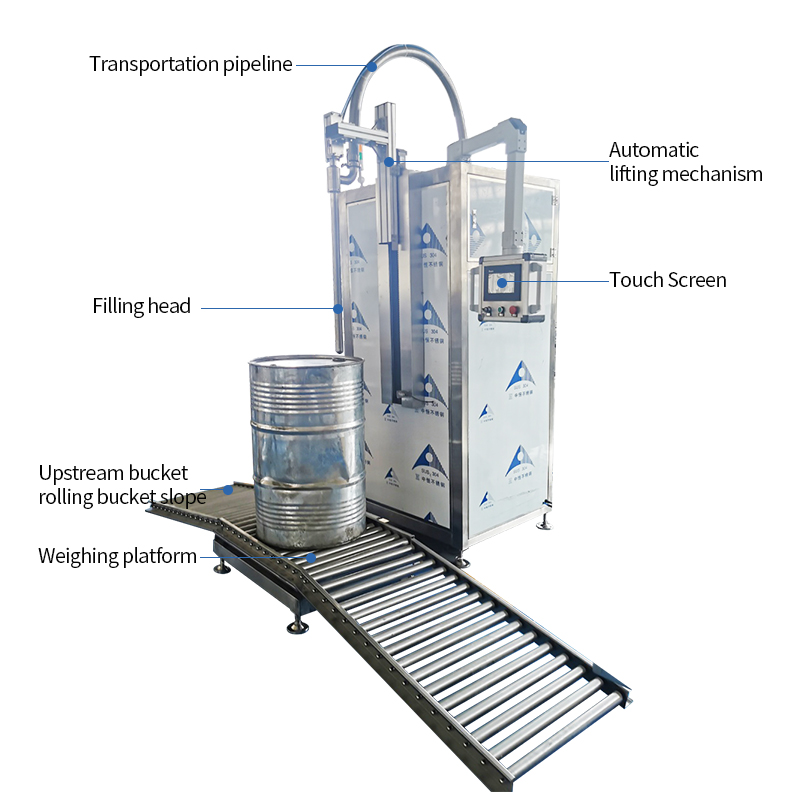

The 200kg weighing liquid filling machine is an automated equipment specifically designed for quantitative filling of large capacity liquids. It uses high-precision weighing sensors and control systems to achieve precise filling of viscous, corrosive, or high-precision required liquids (such as oils, chemical raw materials, food additives, etc.), with a single barrel capacity of up to 200 kilograms.
| Number of filling heads | Single-head electronic weighing scale |
| Weighing range | 20 - 200 kg (can be customized up to 300 kg) |
| Filling accuracy | ±0.1% - 0.2% FS (High Precision Sensor) |
| Filling speed | 10 to 15 barrels per hour |
| Tolerance value | 10g - 50g (adjustable) |
| Equipment weight | 250-400KG |
| Overall dimensions | Approximately 3000*750*1650 (mm) |
Product details：

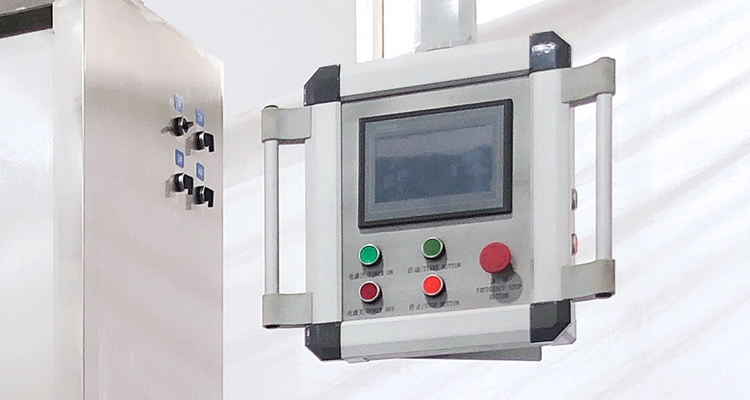

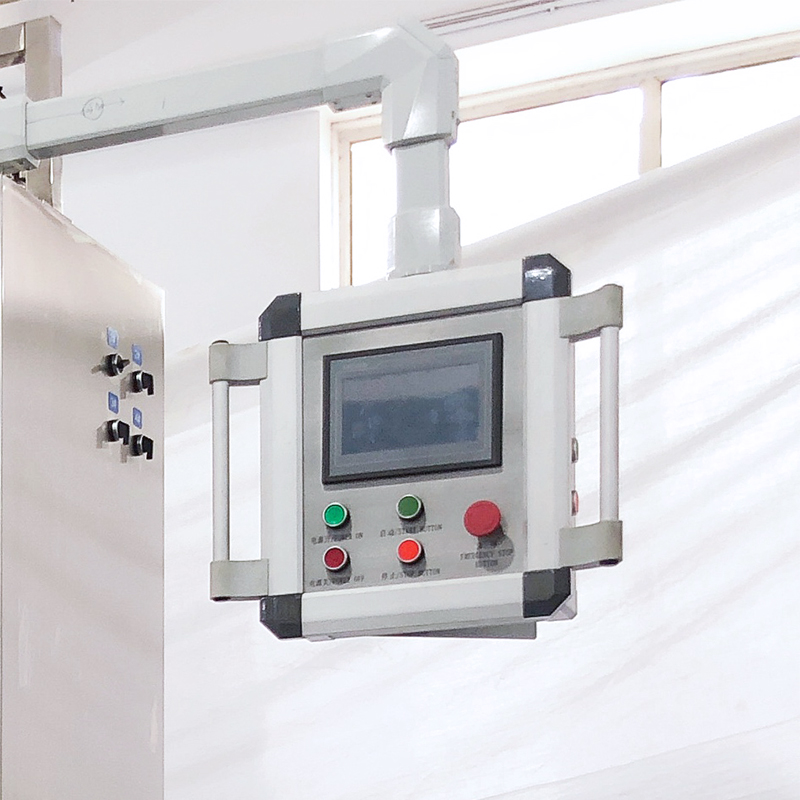

Intelligent control system, with PLC + touch screen operation, featuring automatic skin removal, weight accumulation, and fault alarm (such as out-of-specification or material shortage) functions.

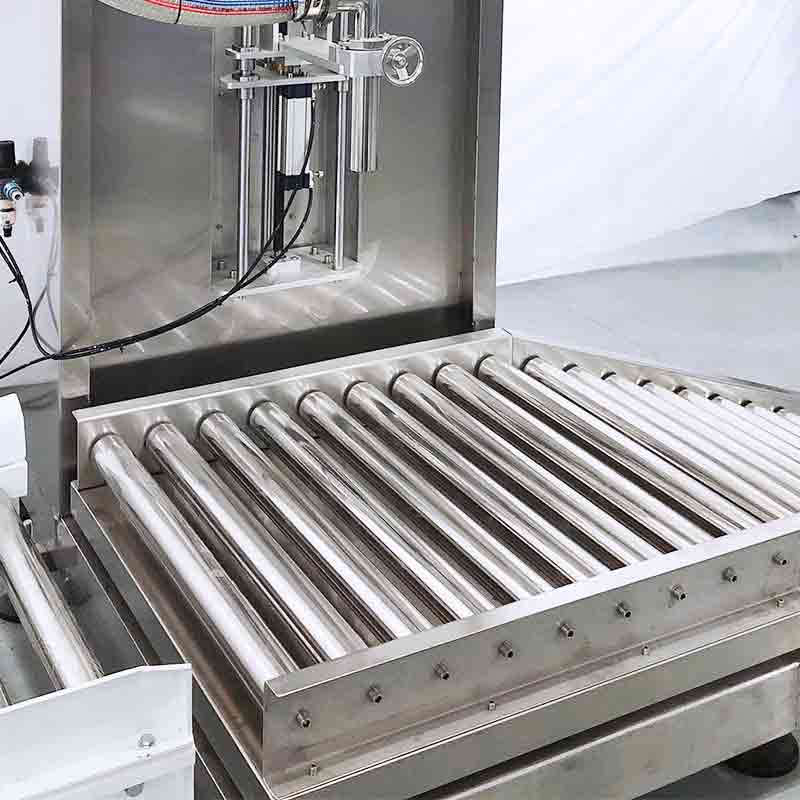

High-precision weighing system, with weighing sensors combined with digital filtering technology, resistant to vibration interference, ensuring industry-leading accuracy of ±0.1%.
Segmented fast-slow filling control, high-flow rapid filling (90% volume) + low-flow fine-tuning (remaining 10%). This approach balances efficiency and accuracy.
