Oil Filling Machine

The oil filling machine production line is mainly composed of: filling machine, capping machine, capping machine, and conveyor. The main part of the production line is mainly used for automatic filling of bottled liquid. The standard model parameters are provided here. The parameter range can be customized by customers.

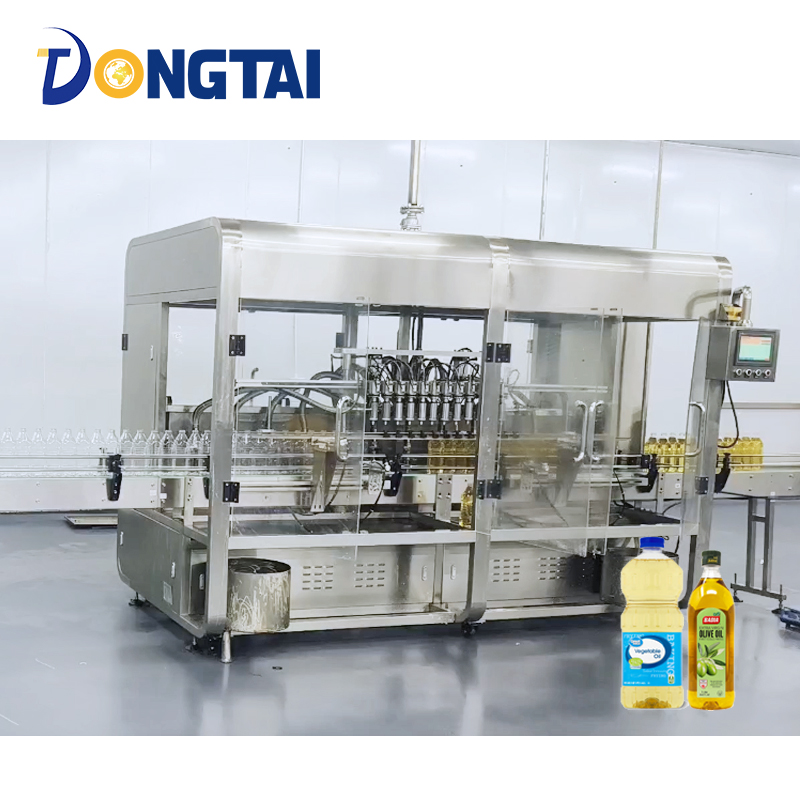

Edible Oil Filling Machine
The edible oil filling machine design is reasonable, small, easy to operate, cylinder piston and cylinder body are made of stainless steel material, using thin cylinder, control the filling valve open and close, valve core is made of high quality stainless steel, can be used for a variety of corrosive liquid filling,
Edible oil filling machine is designed with anti-drip, anti-wire-drawing, adjustable lifting filling device, cylinder shaft and filling liquid isolation, greatly extending the service life of the cylinder.
Edible Oil Filling Machine Filling volume and filling speed can be arbitrarily adjusted, high filling accuracy.Fillable liquids (edible oil, lubricating oil, detergent, oil, etc.)

Automatic lubricating oil filling machine
1. The material contact part is made of 316 stainless steel, which conforms to GMP requirements.
2. The lubricating oil filling head is equipped with anti-drip irrigation device.
3. Pneumatic components of automatic lubricating oil filling machine are controlled by PLC(German FESTO) and AirTac(Taiwan) with touch screen Settings.
4. The confidential seal of automatic lubricating oil filling is made of silicone rubber (wear resistance, high temperature resistance, acid and alkali resistance, corrosion resistance) and fluororubber (wear resistance, strong acid and alkali resistance, corrosion resistance).
5. Automatic lubricating oil filling machine can remove the long leather tube from the discharge port and move it to fill at will, which can meet the requirements of unlimited (arbitrarily adjustable) Filling capacity of more than 1ml.
Not limited by Filling equipment, Automatic Lube Filling Machine is a reliable and durable liquid Filling Machine.

Lubricating Oil Filling Machine
This machine is a flow meter filling machine, which controls the filling volume by using the principle of flow meters. The filling is controlled by a programmable controller PLC. When the filling valve is opened, the material flows into the container to be transported by itself.
Lubricating Oil Filling Machine The filling part of the machine realizes fast filling and slow filling through double cylinder. After the initial filling of the cylinder, the double cylinder is converted to the stroke 1 and quickly converted to the stroke 2 for quick filling. Lubricating Oil Filling Machine After filling to the fast filling set, the submergence cylinder rises to the barrel, and the double cylinder is converted to the stroke 1 to continue the slow filling until the overall filling amount is set.

The oil filling machine is suitable for filling 4kg-25kg automotive products: lubricating oil, antifreeze, car urea and other liquids. A series of operations such as counting into bottles, counting weight filling, and conveying out bottles are completed automatically. It is especially suitable for quantitative filling of lubricating oil, motor oil and edible oil. It is an ideal filling machine for food, medicine, cosmetics and fine chemical industries.

The patented design and vacuum suction system ensure that there will be no dripping during the filling process and will not contaminate the conveyor chain and the bottle body. The filling head and the cylinder body adopt a split mechanism, which can be disassembled separately without liquid leakage or damage to the cylinder body. The imported Yade passenger cylinder is sturdy and durable. Other seals and other accessories use standard parts, which are easy to replace and maintain.

1. The engine oil filling machine adopts power filling, no high-position tank is required.

2. Lube oil filling capping labeling machine adopts crawler-type capping machine, which is stable and noiseless and has no air pressure.

3. The palm oil filling and sealing machine simplifies the installation process and improves the filling efficiency.

The filling pipe is easy to maintain, and the clamp joint is easy to disassemble: the pipe is connected by a quick-release clamp joint, which can be easily disassembled, maintained and cleaned. The all-stainless steel pipe of the lubricating oil filling machine does not collapse, crack, age, and has a long service life. Greatly reduce equipment maintenance costs.

1. Sunflower oil filling machine Submerged filling to prevent foaming.

2. Automatic olive oil filling machine piston ring material of plunger metering pump can be made of different materials according to different industries and oil composition.

3. The oil lubricants filling machine is designed according to GMP (Good Operating Practice) requirements.
