Automatic Olive Oil Bottling Capping Labeling Packaging Production Line
Automatic Olive Oil Bottling Capping Labeling Packaging Production Line
- dongtaijixie
- 15
- 10
Fully automatic liquid tracking customized filling head production line
The oil filling machine is suitable for quantitative small packaging filling, linear filling, electric and equipment control of various viscous, non-viscous, and corrosive liquids in the vegetable oil chemical, liquid, and daily chemical industries.
Automatic six olive oil filling machine
Filling 100-500ML, error ±1ML, 50% higher than the measurement standard, each filling head independent control, filling head can be switched independently, independent fine-tuning, filling process can dynamically display the filling progress, simple and convenient.
Automatic aluminum cover lock cover sealing machine
It is a device specially designed for the aluminum lid sealing of olive oil bottles. Olive oil aluminum lid locking machine can quickly and accurately complete the sealing work of aluminum lid, improve production efficiency. Can be adapted to different specifications and sizes of olive oil bottles, suitable for a variety of aluminum cap types, with high flexibility.

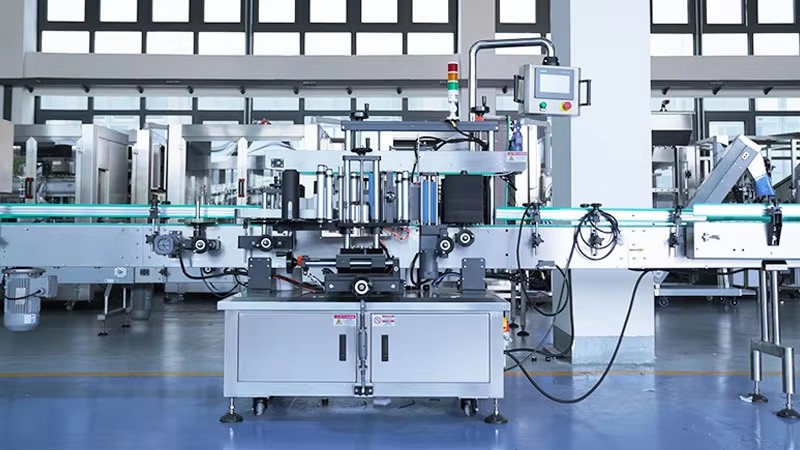

Fully automatic double side labeling machine
It is mainly used to attach labels on both sides of the product. Intelligent control system and transmission mechanism are adopted to realize automatic sending, positioning, labeling and other functions, reducing manual operation and reducing operation difficulty.
Product parameters
| Filling head | 6 heads |
| Filling efficiency (2L/hour) | 600-800 bottles |
| Quantitative error | ±2 grams (when 500g) |
| Operating Voltage | 380/220v (customizable) 50hz |
| working pressure | 0.6-0.8Mpa |
| Capacity range | 10-500ml 500ml-5L 5L-30L |
| Dimensions | 1600*1600*2200mm |
